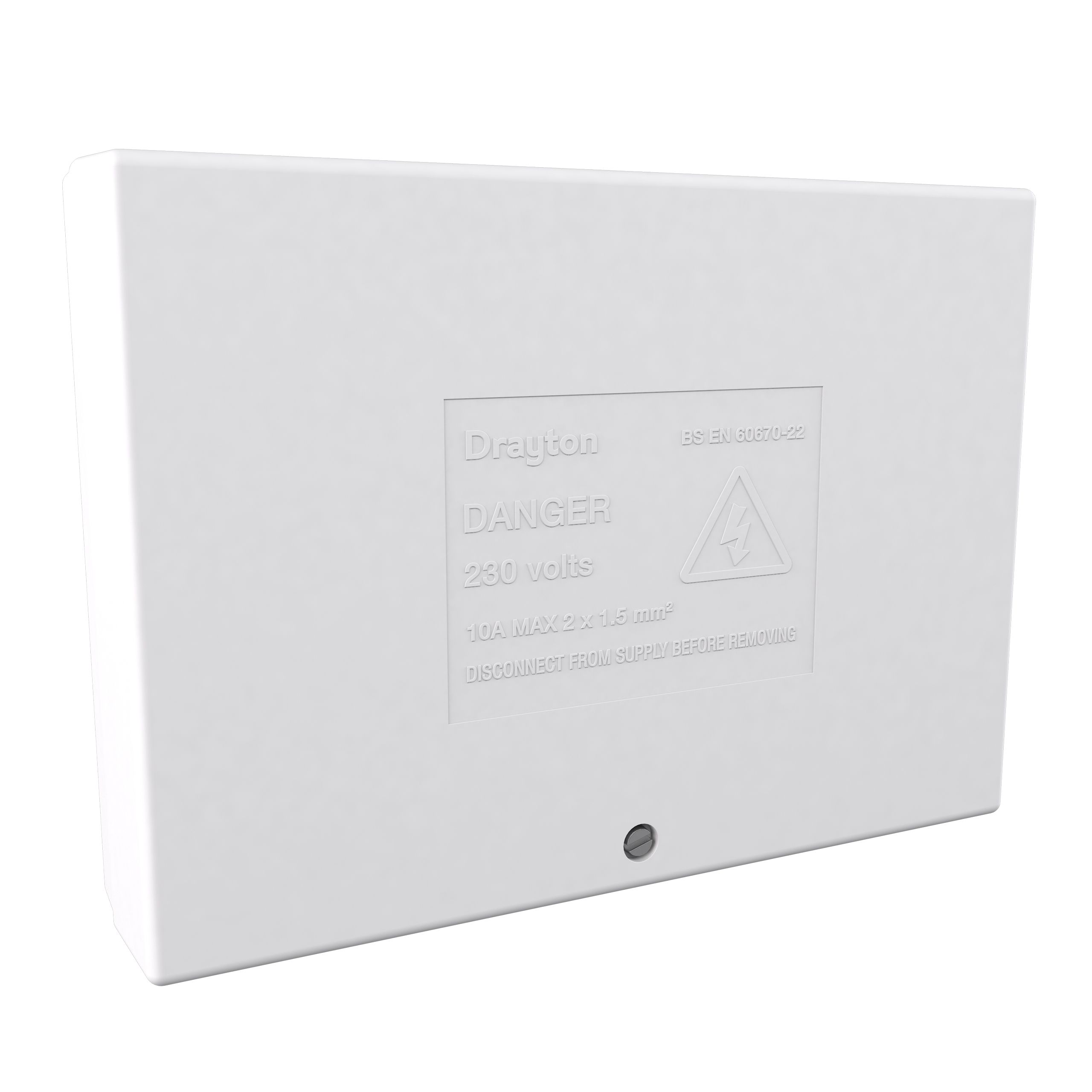

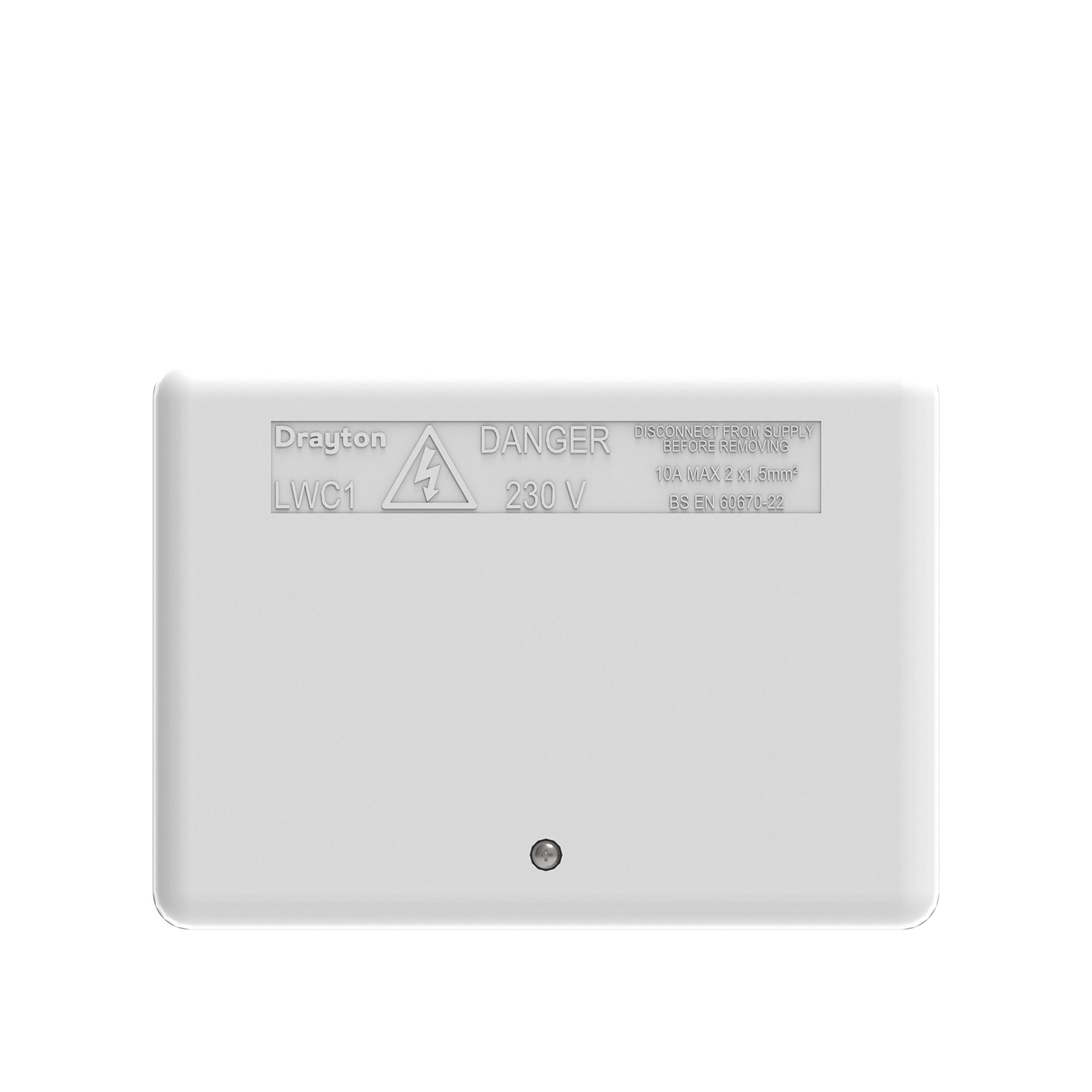

The Drayton LWC1 Wiring Centre is a centralised wiring hub designed to simplify the installation, connection, and testing of central heating and hot water control systems. It provides a convenient location for wiring multiple system components, such as thermostats, motorised valves, programmers, and timers.

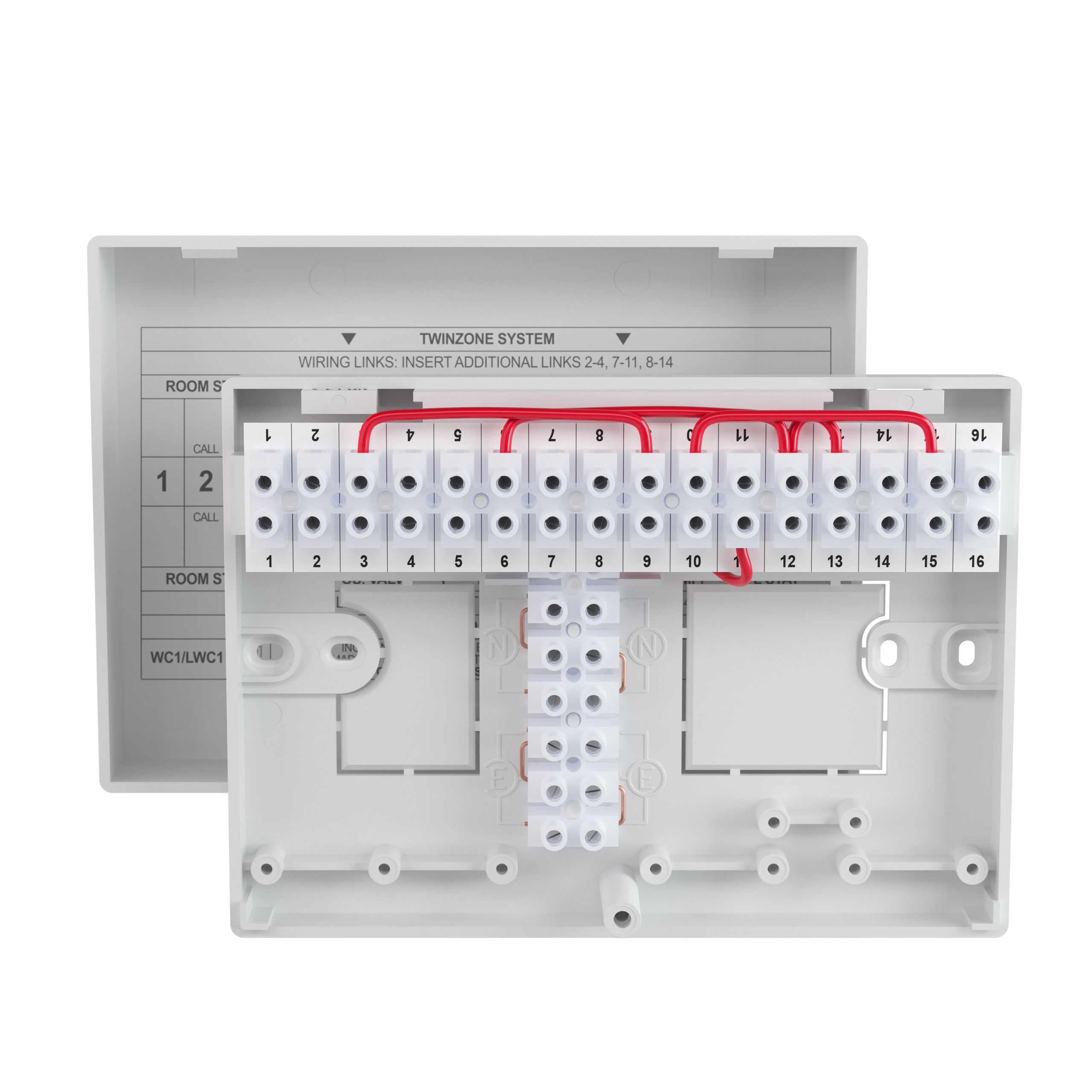

Featuring a 16-way terminal layout, the LWC1 offers plenty of space for connecting heating system components. Its large terminals and generous wiring space make installation easier and help maintain tidy, organised connections. The wiring centre includes multiple cable entry points and integrated cable clamps, ensuring secure cable management and reducing strain on wiring. Preconfigured links also help simplify installation by reducing the number of wires required per terminal. A clear diagram on the lid provides helpful guidance for installers, making system configuration, operational testing, and fault diagnosis easier.

Key Features :

• 16-way wiring centre for heating and hot water systems

• Suitable for thermostats, motorised valves, programmers, and timers

• Large terminals and spacious wiring area for easier installation

• Multiple cable entry points for flexible wiring

• Integrated cable clamps for secure cable management

• Preconfigured links to reduce wiring complexity

• Clear lid diagram for installation guidance and fault diagnosis

• Complies with BS EN60670-22 safety standards
